Show us YOUR transmitter! (Slow connections need not apply [Sorry!])


This is a discussion on Show us YOUR transmitter! (Slow connections need not apply [Sorry!]) within the DTV | HDTV Reception and Antenna Discussion forums, part of the Over-the-Air (Antenna TV) category.

+ Reply to Thread
Results 1 to 8 of 8
Like Tree6Likes
  • 1 Post By nbound-au
  • 2 Post By nbound-au
  • 1 Post By Fringe Reception
  • 1 Post By Fringe Reception
  • 1 Post By MrPogi
  1. #1
    The Graveyard Shift nbound-au's Avatar
    Join Date
    May 2012
    Location
    Canberra, ACT - Australia
    Posts
    730
    Blog Entries
    1

    Default Show us YOUR transmitter! (Slow connections need not apply [Sorry!])

    Now we all know theres some pretty interesting antenna farms and transmitters around. Post yours here...

    Give us some basic information such as (just skip if you are unsure)-

    Who broadcasts from there...
    ERP...
    Location...
    A little history...
    And some pretty pictures
    Jason Fritz likes this.
    nbound-au is a qualified Antenna, Satellite, and MATV installer.

    I live in DVB-T land.


  2. #2
    The Graveyard Shift nbound-au's Avatar
    Join Date
    May 2012
    Location
    Canberra, ACT - Australia
    Posts
    730
    Blog Entries
    1
    Thread Starter

    Default

    Black Mountain Tower (AKA. Telstra Tower)

    Location: Canberra, ACT, Australia (pop: 370,000)
    Tower Height: 195.2m (640.4ft)
    Black Mountain Height: 812m ASL (2664ft ASL), or 256m (840ft) above city.
    Combined prominence above city: 451.2m (1480ft)

    Designed to replace several other facilities in Canberra. Completed in 1980. Member of the the World Federation of Great Towers.

    TV Broadcasts:
    CTC6 (Southern Cross Ten)
    ABC9A (Australian Broadcasting Corporation)
    WIN11 (WIN Television)
    CBN12 (Prime7)
    SBS30 (Special Broadcasting Service)

    All VHF broadcasts vertically polarised, 50kW ERP. UHF broadcast horizontally polarised, 200kW ERP (equivalent coverage to the VHF services)


    Digital Radio:
    DAB+ Trial Multiplex (DAB Channel 10B - 3.1kW)


    FM Radio:
    10 stations: 20-80kW.


    And many more other services including but not limited to those listed in the picture below.

    Name:  plan.jpg
Views: 56
Size:  87.2 KB
    Revolving restaurant woooooooooooooooooo

    Name:  warning.jpg
Views: 54
Size:  80.3 KB
    Uh oh!

    Name:  tower.jpg
Views: 53
Size:  103.1 KB
    Shiny!
    Last edited by nbound-au; 12-03-2012 at 09:20 PM.
    nbound-au is a qualified Antenna, Satellite, and MATV installer.

    I live in DVB-T land.


  3. #3
    The Graveyard Shift nbound-au's Avatar
    Join Date
    May 2012
    Location
    Canberra, ACT - Australia
    Posts
    730
    Blog Entries
    1
    Thread Starter

    Default

    Cmon y'all (see im totally american )

    I wanna see some of your transmitters....

    I dont care if they are buildings, or guyed masts, or lattice towers... just as long as there is specs and pics
    nbound-au is a qualified Antenna, Satellite, and MATV installer.

    I live in DVB-T land.


  4. #4
    Super Moderator
    Chief Content Editor
    Fringe Reception's Avatar
    Join Date
    Nov 2009
    Location
    Seattle ... and still learning that sometimes ATSC reception = Black Magic plus Pixie Dust
    Posts
    4,016
    Blog Entries
    36

    Default

    Since at least 1962 and probably before then, KING TV-5 (NBC) has lit their Seattle tower as a Christmas tree. Depending on your location, it can be easily seen 25 miles away when the weather is clear. Here are some fairly recent photos.

    Merry Christmas, all!





    *Update: here are two more photos I found on Google Images. The first is fuzzy but the second one is class act credited to a photographer or blogger or someone named Albeiter. Nice shot+. This smart photographer found the ideal spot where KOMO-4 (38) and KIRO-7 (39) buttress the lighted KING-5 (48) tower. Good job because it looks much like my own photographic work.





    Lighting the King-5 Tower (video report) can be seen here:

    Lighting the KING 5 tower | KING5.com Seattle
    Last edited by Fringe Reception; 12-16-2012 at 04:30 PM.
    nbound-au likes this.

  5. #5
    Super Moderator
    Chief Content Editor
    Fringe Reception's Avatar
    Join Date
    Nov 2009
    Location
    Seattle ... and still learning that sometimes ATSC reception = Black Magic plus Pixie Dust
    Posts
    4,016
    Blog Entries
    36

    Default

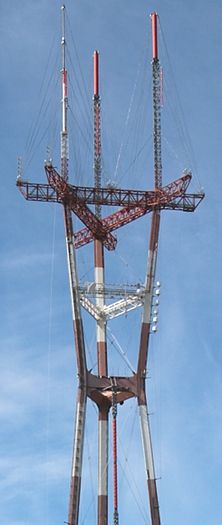

    In the San Francisco Bay area, this is the awesome Mount Sutro Tripod Tower that offers FREE TV and FM radio to the public. It also hosts many Public Service antennas including some for Police and Fire Department / Perimedic Dispatches. The perfect location for the Region offering great coverage.

    Two interesting links are below.



    Sutro Tower at Mount Sutro

    Sutro Tower Photos
    Last edited by Fringe Reception; 12-14-2012 at 06:36 PM.
    nbound-au likes this.

  6. #6
    The Graveyard Shift nbound-au's Avatar
    Join Date
    May 2012
    Location
    Canberra, ACT - Australia
    Posts
    730
    Blog Entries
    1
    Thread Starter

    Default

    Thats a pretty awesome looking tower, nice view of SF from the top aswell.

    Thanks for the linkies, good reading
    Last edited by nbound-au; 12-14-2012 at 08:44 PM.
    nbound-au is a qualified Antenna, Satellite, and MATV installer.

    I live in DVB-T land.


  7. #7
    Super Moderator
    Chief Content Editor
    Fringe Reception's Avatar
    Join Date
    Nov 2009
    Location
    Seattle ... and still learning that sometimes ATSC reception = Black Magic plus Pixie Dust
    Posts
    4,016
    Blog Entries
    36

    Default

    Here is a new Radio Tower in Fort Worth, Texas named "Night Song" that was inspired by the RKO Radio Pictures logo.










    An article about "Night Song" and Public Art is here:

    Fort Worth radio tower takes public art to new heights | Mom2MomDFW.com


    More photos can be seen here:

    Progress being made on the new comm tower for Fort Worth - The RadioReference.com Forums

  8. #8
    Moderator

    Webmaster of Cache Free TV
    MrPogi's Avatar
    Join Date
    Feb 2010
    Location
    Las vegas
    Posts
    4,168
    Blog Entries
    30

    Default

    We don't get pretty towers here. We get a jumble of towers on a mountain.
    This is Mt. Farnsworth near Salt Lake City, UT.
    Attachment 2143
    Obviously, things can get pretty ugly when the transmitters go down in the winter:
    Click image for larger version.

Name:	farnsworth.snow.jpg
Views:	46
Size:	133.2 KB
ID:	2144
    I understand they have to tunnel into the buildings.

    Click image for larger version.

Name:	farnsworth door.jpg
Views:	40
Size:	159.7 KB
ID:	2146

    But I don't get my signal directly from Salt Lake, I get it from translators on Mt. Pisgah 10 miles to my south.
    Click image for larger version.

Name:	mtpisgah.jpg
Views:	38
Size:	17.0 KB
ID:	2145
    This is the only pic I could find - its from 2002.
